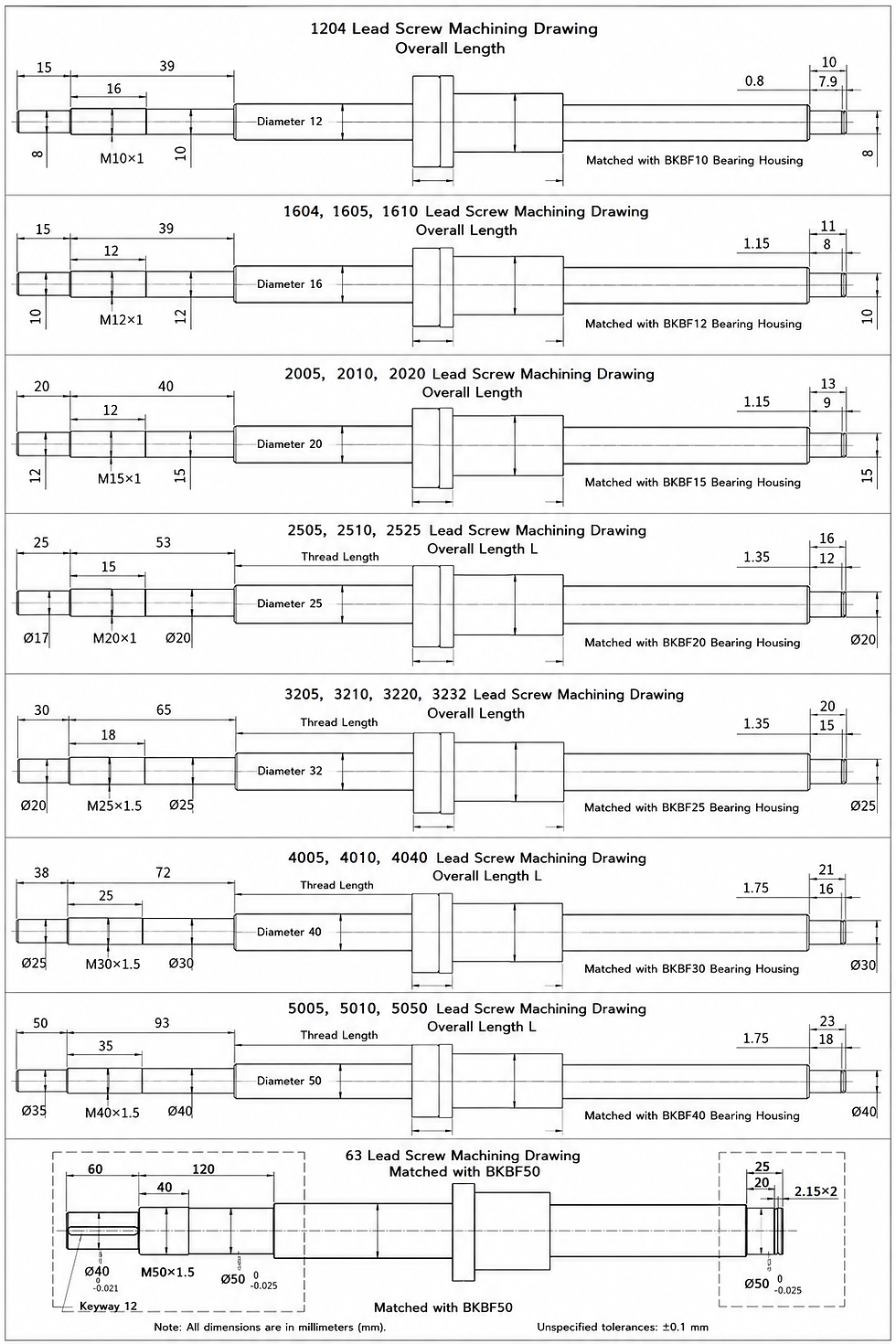

SFU1204 Ball Screw C5 + Nut for CNC
Product Overview
The SFU1204 C5 Precision Ball Screw is manufactured using high-precision machining processes and strict quality control to deliver accurate, smooth and reliable linear motion. Its precision-ground raceways and optimized ball circulation system provide low friction, high transmission efficiency and stable positioning performance. Designed for applications requiring high positioning accuracy and repeatability, the C5 ball screw is suitable for CNC machines, automation equipment, linear motion modules, precision positioning systems and other high-performance machinery.
Screw + Nut. The screw and nut are precision matched as a set, giving you the flexibility to mount them with your own end supports and coupling.
The compact 12 mm shaft diameter is well suited to light-duty machines, small linear modules and space-constrained designs. With a fine 4 mm lead, this screw delivers high positioning resolution and precise incremental feed, making it ideal for applications where accuracy matters more than speed, such as engraving, EDM and fine positioning tables.
Key Features
C5 Precision Grade: Provides high positioning accuracy and repeatability.
High Transmission Efficiency: Rolling contact minimizes friction and improves power transmission efficiency.
Smooth Operation: Precision ball circulation ensures stable and low-friction movement.
High Wear Resistance: Precision-machined raceways provide excellent durability and long service life.
Stable Positioning: Suitable for high-frequency and continuous-motion applications.
Flexible Specifications: Available in various shaft diameters, leads, lengths and nut configurations.
Specifications
Model | SFU1204 |
Shaft Diameter | 12 mm |
Lead | 4 mm |
Precision Grade | C5 |
End Support Type | Not included (mount with your own supports) |
Coupler & Housing | Not included |
Available Lengths | 200 mm – 1500 mm (select from options above; custom lengths on request) |
What's in the Box
1 x SFU1204 C5 precision ball screw shaft (length of your choice)
1 x matching C5 precision ball nut
Typical Applications
CNC machine tools, automation equipment, linear modules, precision positioning systems, semiconductor equipment, 3C manufacturing equipment, industrial machinery and other precision motion-control applications.
Ordering Information
Available in screw lengths from 200 mm to 1500 mm. Choose your required length from the options above. Custom lengths, pre-cutting, additional nuts and matching accessories are available on request; please contact us with your requirements before ordering.
